Description

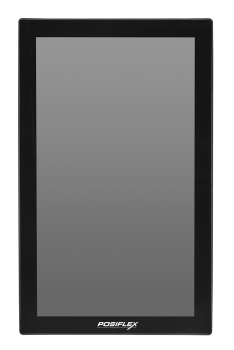

21.5” Full HD LCD display in portrait orientation

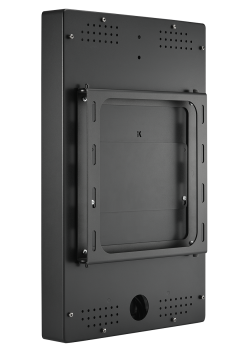

Wall mount configuration
Rugged, hard-wearing and vandal-proof
Ideally for digital signage applications in retail, food-service, healthcare, hospitality, transportation, education, and more
SPECIFICATION:
Processor: Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache
System Memory: DDR3L SO-DIMM slot x 1, max. 8 GB
Storage Device: SATA SSD x 1 (2.5″ SSD)
Power Supply: 12V/60W
OS Support: POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7
SERIAL PORT: RJ50 x 2
STANDARD USB PORT: 6, USB2.0 x 5 + USB3.0 x 1
DISPLAY PORT: VGA x 1
LAN PORT: 10/100/1000 Mb x 1
Audio: Audio-out + Mic-in combo jack x 1
EXPANSION SLOT: M.2 x 1
LCD: 21.5″
RESOLUTION: 1920 x 1080
DIMENSION (W X D X H IN MM): 543 x 84 x 334
Weight: 9.8
OPERATING CONDITION: 0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
STORAGE CONDITION: -15°C – 60°C, 10%RH – 90%RH
WIFI: WIFI + Bluetooth module and internal antenna supporting 2T2R mode, 802.11abgn/ac, 2.4GHz / 5GHz dual band
4G COMMUNICATION: Support selected bands & countries with full SIM slot (mini-PCIe module) by request
BRAND: Posiflex
